The tie rod with microswitch is the component that secures and holds in position the blade cover of the RGV Dolly series model 300 slicer (300/A and 300/S versions). Besides keeping the blade guard firmly in place, it incorporates a safety microswitch: the "micro" detects the correct positioning of the blade cover and, when the guard is not seated, cuts off the machine's operation, preventing the blade from starting.

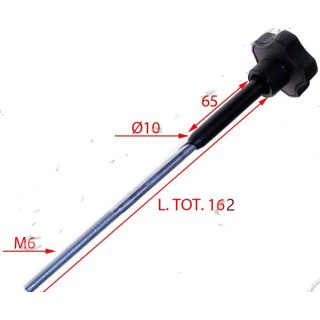

Technical specifications:

• Tie rod length: 162 mm
• Micro length: 69 mm
• Thread: M6 (Ø 6)
• Micro diameter: Ø 10 mm

Compatibility: RGV Dolly series model 300 slicer (300/A and 300/S).

When to replace it: the part should be changed when the microswitch no longer trips correctly (the machine does not start or, on the contrary, keeps running with the blade cover removed), when the thread is damaged, or when the tie rod no longer locks the guard firmly. As this is a safety component, it is advisable to check its operation periodically and replace it at the first signs of malfunction. To identify the correct spare part, check that the measurements (length 162 mm, micro 69 mm, M6 thread, micro Ø 10 mm) match those of the original part fitted on your machine.
