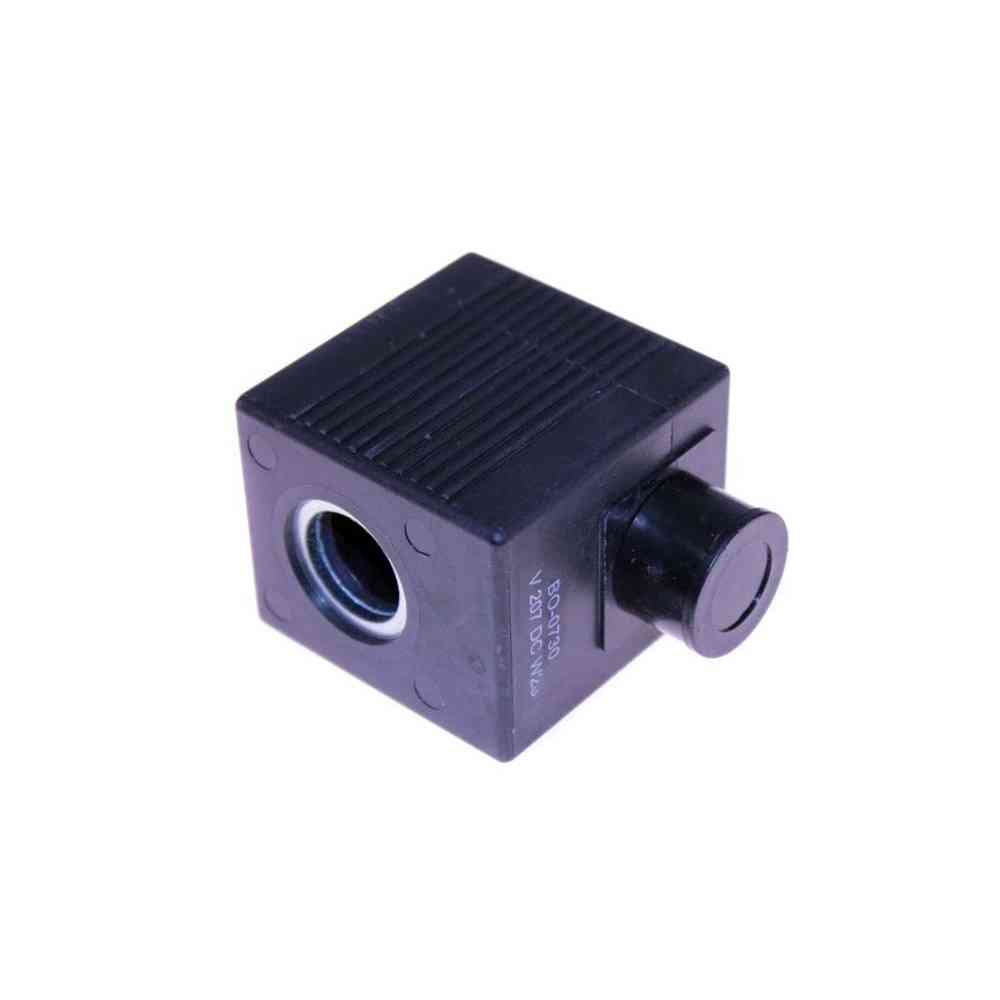

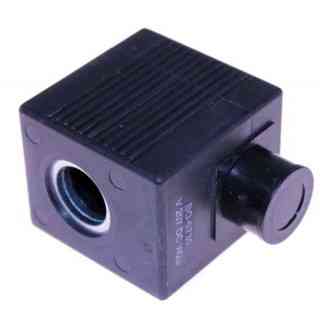

Control coil (solenoid) for solenoid valve, model Parker YB09 coil - code BO-0730. Electrical spare part compatible with solenoid valve ref. 1.023.015, used in the washing and dishwashing unit of food-processing machines.

The coil wraps the valve core: once energised at 220/230V it generates the magnetic field that moves the plunger and opens or closes the fluid passage. It is the part that turns the electrical signal into mechanical action on the valve. Without an efficient coil the valve does not energise and stays shut, blocking the hydraulic circuit it controls.

• Model: Parker YB09 coil (code BO-0730)
• Square shape
• Power supply: 220/230V, 50/60 Hz
• Power draw: 9 W
• Dimensions LxBxH: 34x32x42 mm
• Application: solenoid valve ref. 1.023.015

Replace it when the coil is burnt out, short-circuited or no longer energises the valve (valve failing to switch even when powered).

Electrical component: replacement must be carried out by qualified technical staff, with the machine disconnected from the mains.
