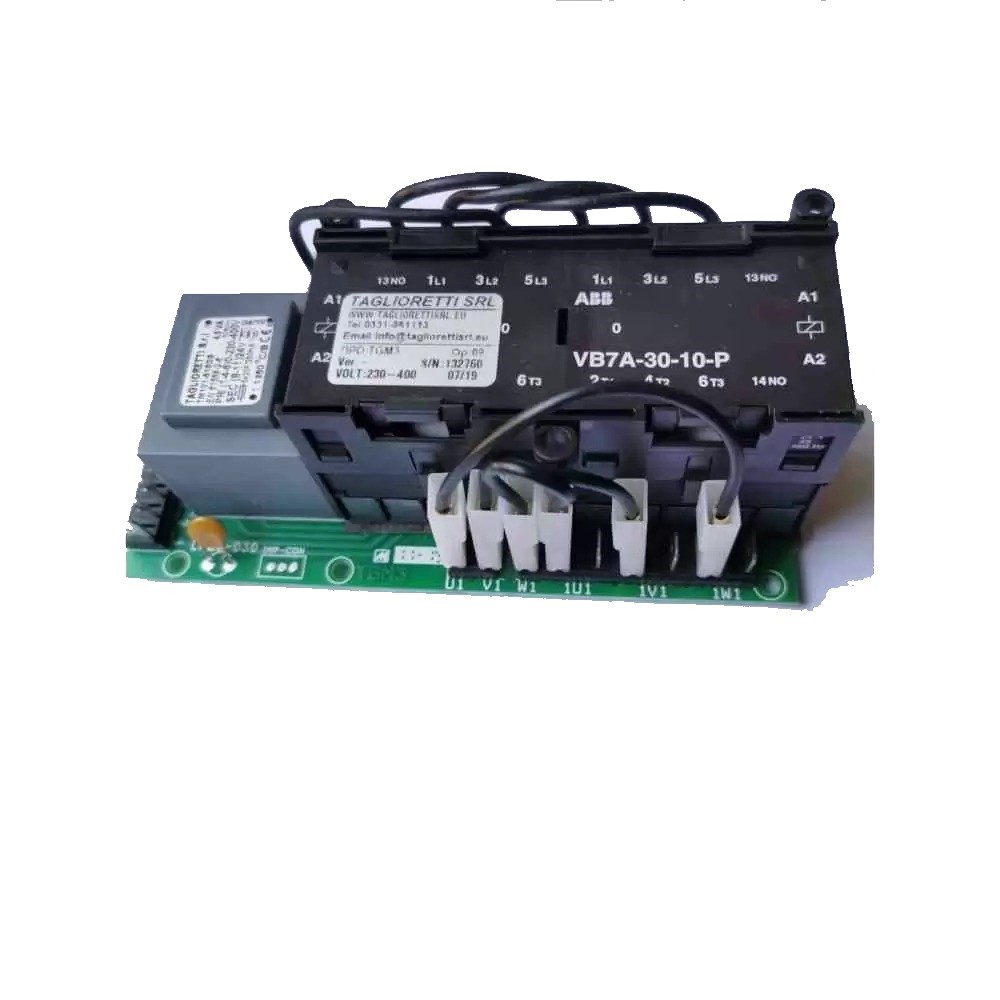

Electronic control board with reverse function, model TGM3, voltage 220/380V, dimensions 145 x 70 mm. Spare part for meat grinders and dough mixers.

What it does. In addition to handling motor start, stop and safety, this board controls the reverse function (forward/reverse rotation): a key feature above all on meat grinders, because briefly reversing the direction of rotation frees the auger when meat or sinew jams it, avoiding the need to dismantle the assembly.

Features:

• reverse function (forward/reverse);
• voltage 220V single-phase / 380V three-phase;
• board dimensions 145 x 70 mm — useful for checking the fit inside the machine compartment;
• can be connected to the push-button panel code AGWSELE0896.

When to replace it. Typical symptoms: the machine does not start even though it has power, the motor does not stay running after start-up, or the reverse function no longer works.

Important. Before purchase, check the TGM3 marking, the voltage, the 145x70 dimensions and that the connectors match. As this is an electrical component, installation should be entrusted to a qualified technician.
